What You'll Build

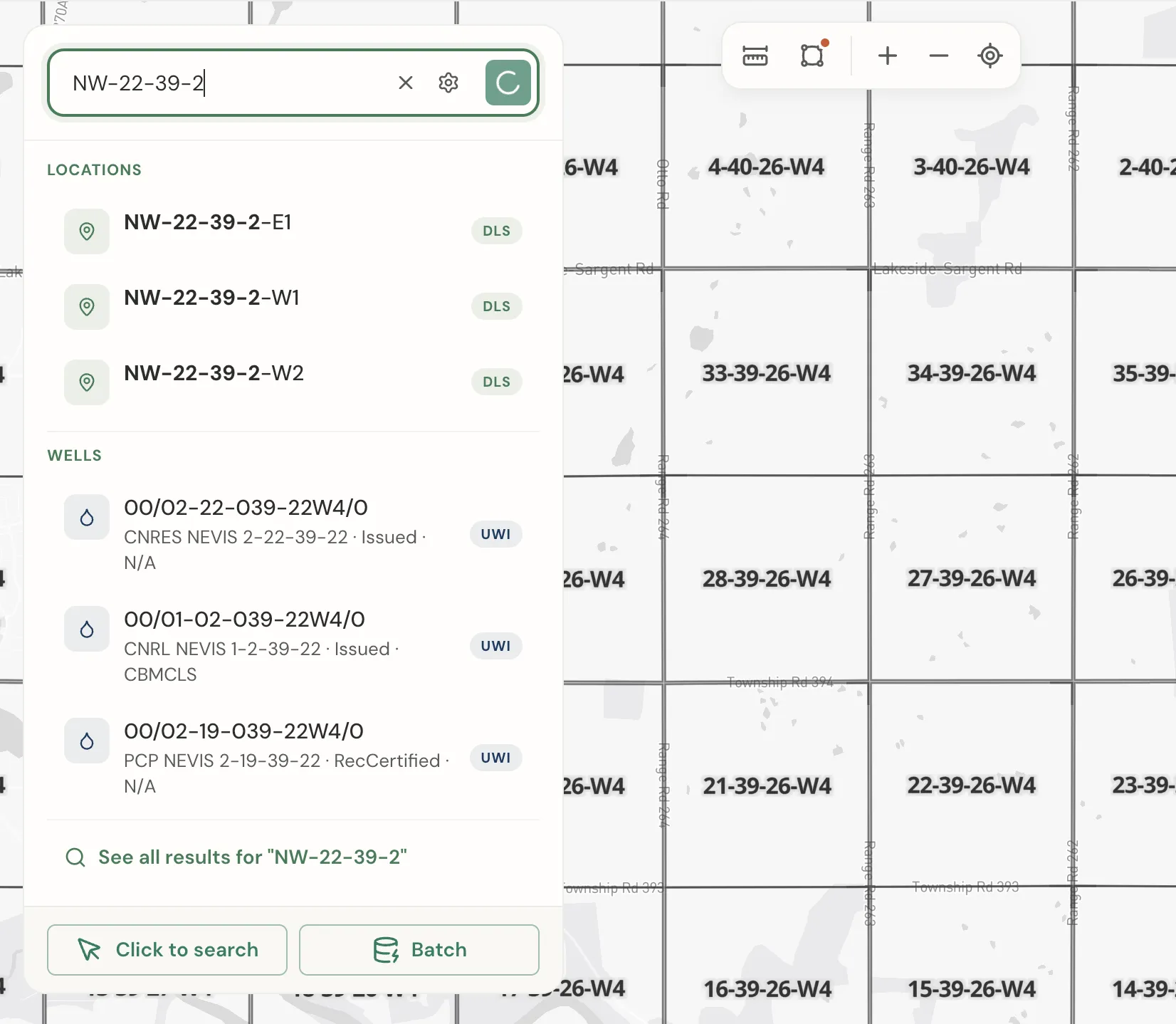

A search-as-you-type input that queries the Township Canada Autocomplete API as users type, shows a dropdown of matching legal land descriptions, and lets users select a result with mouse or keyboard. By the end you'll have a working component in vanilla JS and React.

Prerequisites

A Township Canada API key — get one at /api
Basic familiarity with fetch and async/await
For the React example: a React project (Next.js, Vite, or Create React App)

The Autocomplete Endpoint

GET https://developer.townshipcanada.com/autocomplete/legal-location

Headers:

X-API-Key: YOUR_API_KEY

Query parameters:

Parameter	Required	Description
`location`	Yes	Partial or full legal land description, e.g. `NW-2`
`limit`	No	Number of results to return. Range: 1–10, default 3
`proximity`	No	Bias results toward a point: `lng,lat`

Example request:

GET /autocomplete/legal-location?location=NW-25-24-1&limit=3

Response format:

{
  "type": "FeatureCollection",
  "features": [
    {
      "type": "Feature",
      "geometry": {
        "type": "Point",
        "coordinates": [-114.01924, 51.077932]
      },
      "properties": {
        "legal_location": "NW-25-24-1-W5",
        "search_term": "NW-25-24-1",
        "survey_system": "DLS",
        "unit": "Quarter Section"
      }
    }
  ]
}

Each feature's display label is at feature.properties.legal_location. Coordinates are at feature.geometry.coordinates as [longitude, latitude].

Step 1: Debouncing

The autocomplete endpoint is fast, but firing a request on every keystroke wastes API quota and creates a choppy experience. A 300ms debounce is the right balance — responsive enough that users don't notice the delay, but conservative enough to batch rapid keystrokes into a single request.

function debounce(fn, delay) {
  let timer;
  return function (...args) {
    clearTimeout(timer);
    timer = setTimeout(() => fn.apply(this, args), delay);
  };
}

Wrap your fetch call with this before attaching it to the input event.

Step 2: Cancelling In-Flight Requests

When a user types quickly, earlier requests may return after newer ones. Without cancellation, stale results can overwrite fresh ones. Use AbortController to cancel the previous request before issuing a new one:

let controller = null;

async function fetchSuggestions(query) {
  if (controller) controller.abort();
  controller = new AbortController();

  const res = await fetch(
    `https://developer.townshipcanada.com/autocomplete/legal-location?location=${encodeURIComponent(query)}&limit=3`,
    {
      headers: { "X-API-Key": "YOUR_API_KEY" },
      signal: controller.signal
    }
  );

  const data = await res.json();
  return data.features;
}

Catch AbortError separately so it doesn't surface as a user-visible error — it's expected behaviour.

Step 3: Proximity Biasing

If your app has a map, pass its current center to the proximity parameter. The API will score results closer to that point higher. This is especially useful for partial queries like NW-2 that match dozens of locations across the prairies.

const center = map.getCenter(); // { lng, lat } from your map library
const url =
  `https://developer.townshipcanada.com/autocomplete/legal-location` +
  `?location=${encodeURIComponent(query)}` +
  `&limit=3` +
  `&proximity=${center.lng},${center.lat}`;

Without proximity, a search for NW-2 returns the first five alphabetical matches. With proximity set to central Alberta, it returns the five closest matches to where the user is looking. See the Mapbox integration guide for how to wire this up with a live map.

A good autocomplete dropdown handles three interaction modes:

Mouse: hover highlights a suggestion, click selects it
Keyboard: arrow keys move the highlighted index, Enter selects, Escape closes
Outside click: clicking anywhere outside the input or dropdown closes it

Track highlightedIndex as an integer, reset to -1 when the list updates.

Vanilla JS Example

A complete standalone implementation — no build step required.

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <title>Township Autocomplete</title>
    <style>
      .autocomplete-wrapper {
        position: relative;
        width: 360px;
      }
      input {
        width: 100%;
        padding: 8px 12px;
        font-size: 16px;
        box-sizing: border-box;
      }
      .suggestions {
        position: absolute;
        top: 100%;
        left: 0;
        right: 0;
        background: #fff;
        border: 1px solid #ddd;
        border-top: none;
        list-style: none;
        margin: 0;
        padding: 0;
        z-index: 100;
      }
      .suggestions li {
        padding: 10px 12px;
        cursor: pointer;
        font-size: 15px;
      }
      .suggestions li.highlighted {
        background: #f0f7f4;
      }
      .suggestions li.no-results {
        color: #888;
        cursor: default;
      }
    </style>
  </head>
  <body>
    <div class="autocomplete-wrapper">
      <input
        id="lld-input"
        type="text"
        placeholder="e.g. NW-25-24-1-W5"
        autocomplete="off"
      />
      <ul
        id="suggestions"
        class="suggestions"
        hidden
      ></ul>
    </div>

    <script>
      const API_KEY = "YOUR_API_KEY";
      const input = document.getElementById("lld-input");
      const list = document.getElementById("suggestions");
      let features = [];
      let highlightedIndex = -1;
      let controller = null;

      function debounce(fn, delay) {
        let timer;
        return function (...args) {
          clearTimeout(timer);
          timer = setTimeout(() => fn.apply(this, args), delay);
        };
      }

      async function fetchSuggestions(query) {
        if (controller) controller.abort();
        controller = new AbortController();

        try {
          const res = await fetch(
            `https://developer.townshipcanada.com/autocomplete/legal-location` +
              `?location=${encodeURIComponent(query)}&limit=3`,
            {
              headers: { "X-API-Key": API_KEY },
              signal: controller.signal
            }
          );
          const data = await res.json();
          return data.features || [];
        } catch (err) {
          if (err.name === "AbortError") return null;
          console.error("Autocomplete error:", err);
          return [];
        }
      }

      function renderSuggestions() {
        list.innerHTML = "";
        highlightedIndex = -1;

        if (features.length === 0) {
          const li = document.createElement("li");
          li.className = "no-results";
          li.textContent = "No results";
          list.appendChild(li);
        } else {
          features.forEach((feature, i) => {
            const li = document.createElement("li");
            li.textContent = feature.properties.legal_location;
            li.addEventListener("mouseenter", () => highlight(i));
            li.addEventListener("click", () => selectFeature(feature));
            list.appendChild(li);
          });
        }

        list.hidden = false;
      }

      function highlight(index) {
        const items = list.querySelectorAll("li:not(.no-results)");
        items.forEach((el) => el.classList.remove("highlighted"));
        highlightedIndex = index;
        if (index >= 0 && index < items.length) {
          items[index].classList.add("highlighted");
        }
      }

      function selectFeature(feature) {
        input.value = feature.properties.legal_location;
        const [lng, lat] = feature.geometry.coordinates;
        list.hidden = true;
        features = [];
        console.log("Selected:", feature.properties.legal_location, { lng, lat });
        // → fly your map here, or dispatch an event
      }

      const debouncedFetch = debounce(async (query) => {
        if (query.length < 2) {
          list.hidden = true;
          return;
        }
        const results = await fetchSuggestions(query);
        if (results === null) return; // aborted
        features = results;
        renderSuggestions();
      }, 300);

      input.addEventListener("input", () => debouncedFetch(input.value.trim()));

      input.addEventListener("keydown", (e) => {
        const items = list.querySelectorAll("li:not(.no-results)");
        if (e.key === "ArrowDown") {
          e.preventDefault();
          highlight(Math.min(highlightedIndex + 1, items.length - 1));
        } else if (e.key === "ArrowUp") {
          e.preventDefault();
          highlight(Math.max(highlightedIndex - 1, 0));
        } else if (e.key === "Enter" && highlightedIndex >= 0) {
          e.preventDefault();
          selectFeature(features[highlightedIndex]);
        } else if (e.key === "Escape") {
          list.hidden = true;
        }
      });

      document.addEventListener("click", (e) => {
        if (!e.target.closest(".autocomplete-wrapper")) {
          list.hidden = true;
        }
      });
    </script>
  </body>
</html>

React Example

A custom hook that encapsulates the autocomplete logic, paired with a component.

hooks/useAutocomplete.js

import { useState, useRef, useCallback, useEffect } from "react";

export function useAutocomplete(apiKey) {
  const [query, setQuery] = useState("");
  const [suggestions, setSuggestions] = useState([]);
  const [highlightedIndex, setHighlightedIndex] = useState(-1);
  const [isOpen, setIsOpen] = useState(false);

  const controllerRef = useRef(null);
  const timerRef = useRef(null);

  const fetchSuggestions = useCallback(
    async (value, proximity) => {
      if (controllerRef.current) controllerRef.current.abort();
      controllerRef.current = new AbortController();

      let url =
        `https://developer.townshipcanada.com/autocomplete/legal-location` +
        `?location=${encodeURIComponent(value)}&limit=3`;

      if (proximity) {
        url += `&proximity=${proximity.lng},${proximity.lat}`;
      }

      try {
        const res = await fetch(url, {
          headers: { "X-API-Key": apiKey },
          signal: controllerRef.current.signal
        });
        const data = await res.json();
        const features = data.features || [];
        setSuggestions(features);
        setHighlightedIndex(-1);
        setIsOpen(features.length > 0 || value.length >= 2);
      } catch (err) {
        if (err.name !== "AbortError") {
          console.error("Autocomplete error:", err);
          setSuggestions([]);
        }
      }
    },
    [apiKey]
  );

  useEffect(() => {
    clearTimeout(timerRef.current);
    if (query.trim().length < 2) {
      setSuggestions([]);
      setIsOpen(false);
      return;
    }
    timerRef.current = setTimeout(() => fetchSuggestions(query.trim()), 300);
    return () => clearTimeout(timerRef.current);
  }, [query, fetchSuggestions]);

  const moveDown = useCallback(() => {
    setHighlightedIndex((i) => Math.min(i + 1, suggestions.length - 1));
  }, [suggestions.length]);

  const moveUp = useCallback(() => {
    setHighlightedIndex((i) => Math.max(i - 1, 0));
  }, []);

  const close = useCallback(() => {
    setIsOpen(false);
    setHighlightedIndex(-1);
  }, []);

  return {
    query,
    setQuery,
    suggestions,
    highlightedIndex,
    setHighlightedIndex,
    isOpen,
    moveDown,
    moveUp,
    close
  };
}

components/LldAutocomplete.jsx

import { useRef, useEffect } from "react";
import { useAutocomplete } from "../hooks/useAutocomplete";

export function LldAutocomplete({ apiKey, onSelect }) {
  const wrapperRef = useRef(null);
  const ac = useAutocomplete(apiKey);

  function selectFeature(feature) {
    ac.setQuery(feature.properties.legal_location);
    const [lng, lat] = feature.geometry.coordinates;
    onSelect({ label: feature.properties.legal_location, lng, lat });
    ac.close();
  }

  function handleKeyDown(e) {
    if (e.key === "ArrowDown") {
      e.preventDefault();
      ac.moveDown();
    } else if (e.key === "ArrowUp") {
      e.preventDefault();
      ac.moveUp();
    } else if (e.key === "Enter" && ac.highlightedIndex >= 0) {
      e.preventDefault();
      selectFeature(ac.suggestions[ac.highlightedIndex]);
    } else if (e.key === "Escape") {
      ac.close();
    }
  }

  useEffect(() => {
    function handleClick(e) {
      if (wrapperRef.current && !wrapperRef.current.contains(e.target)) {
        ac.close();
      }
    }
    document.addEventListener("click", handleClick);
    return () => document.removeEventListener("click", handleClick);
  }, [ac.close]);

  return (
    <div
      ref={wrapperRef}
      className="autocomplete-wrapper"
    >
      <input
        type="text"
        value={ac.query}
        onChange={(e) => ac.setQuery(e.target.value)}
        onKeyDown={handleKeyDown}
        placeholder="e.g. NW-25-24-1-W5"
        autoComplete="off"
      />

      {ac.isOpen && (
        <ul className="suggestions">
          {ac.suggestions.length === 0 ? (
            <li className="no-results">No results</li>
          ) : (
            ac.suggestions.map((feature, i) => (
              <li
                key={feature.properties.legal_location}
                className={i === ac.highlightedIndex ? "highlighted" : ""}
                onMouseEnter={() => ac.setHighlightedIndex(i)}
                onClick={() => selectFeature(feature)}
              >
                {feature.properties.legal_location}
              </li>
            ))
          )}
        </ul>
      )}
    </div>
  );
}

Usage in a parent component:

<LldAutocomplete
  apiKey="YOUR_API_KEY"
  onSelect={({ label, lng, lat }) => flyToLocation(lng, lat)}
/>

Next Steps

Fly to the selected location: pass the [lng, lat] coordinates to your map's fly-to method — see the Mapbox integration guide for a complete walkthrough.
Geocode a full LLD: once a user selects a result, use the API reference to fetch the full boundary polygon for that location.
Batch lookups: if you need to geocode multiple locations at once, the batch API guide covers CSV uploads and programmatic batch requests.
API key setup and rate limits: covered in the API integration guide.

Building Autocomplete Search with the Township Canada API

What You'll Build

Prerequisites

The Autocomplete Endpoint

Step 1: Debouncing

Step 2: Cancelling In-Flight Requests

Step 3: Proximity Biasing

Vanilla JS Example

React Example

Next Steps

Related Guides

Legal Land Description API Integration Guide

Managing API Keys for Development, Staging, and Production

Processing Large Datasets with the Batch API
